Case study I: linear elastic cantilever beam topology optimization

The variational form for the linear elastic problem is

\[\int_{\Omega}\sigma:\nabla v d x -\int_{\partial \Omega}(\sigma \cdot \eta) \cdot v d s=0 ,\]

where the \(\sigma\), \(v\) are the stress tenser and the test functions.

The code can be downloaded from here

1. Code

We explain the code in detail in this section.

1.1. Import

First, import dolfin, numpy, openmdao, atomics.api, atomics.pde, and atomics.general_filter_comp.

import dolfin as df
import numpy as np
import openmdao.api as om
from atomics.api import PDEProblem, AtomicsGroup
from atomics.pdes.linear_elastic import get_residual_form
from atomics.general_filter_comp import GeneralFilterComp

1.2. Define the mesh

np.random.seed(0)

'''
Define the mesh
'''
NUM_ELEMENTS_X = 80
NUM_ELEMENTS_Y = 40
LENGTH_X = 160.
LENGTH_Y = 80.

mesh = df.RectangleMesh.create(
    [df.Point(0.0, 0.0), df.Point(LENGTH_X, LENGTH_Y)],
    [NUM_ELEMENTS_X, NUM_ELEMENTS_Y],
    df.CellType.Type.quadrilateral,
)

1.3. Define the PDE problem

'''
3. Setup the PDE problem
'''
# PDE problem
pde_problem = PDEProblem(mesh)

# Add input to the PDE problem:
# name = 'density', function = density_function (function is the solution vector here)
density_function_space = df.FunctionSpace(mesh, 'DG', 0)
density_function = df.Function(density_function_space)
pde_problem.add_input('density', density_function)

# Add states to the PDE problem (line 58):
# name = 'displacements', function = displacements_function (function is the solution vector here)
# residual_form = get_residual_form(u, v, rho_e) from atomics.pdes.thermo_mechanical_uniform_temp
# *inputs = density (can be multiple, here 'density' is the only input)

displacements_function_space = df.VectorFunctionSpace(mesh, 'Lagrange', 1)
displacements_function = df.Function(displacements_function_space)
v = df.TestFunction(displacements_function_space)
method='SIMP'
residual_form = get_residual_form(
    displacements_function,
    v,
    density_function,
    method=method
)

residual_form -= df.dot(f, v) * dss(6)

'''
Define the traction boundary conditions
'''
# here traction force is applied on the middle of the right edge
class TractionBoundary(df.SubDomain):
    def inside(self, x, on_boundary):
        return ((abs(x[1] - LENGTH_Y/2) < LENGTH_Y/NUM_ELEMENTS_Y + df.DOLFIN_EPS) and (abs(x[0] - LENGTH_X ) < df.DOLFIN_EPS*1.5e15))

# Define the traction boundary
sub_domains = df.MeshFunction('size_t', mesh, mesh.topology().dim() - 1)
upper_edge = TractionBoundary()
upper_edge.mark(sub_domains, 6)
dss = df.Measure('ds')(subdomain_data=sub_domains)
f = df.Constant((0, -1. / 4 ))

pde_problem.add_state('displacements', displacements_function, residual_form, 'density')

# Add output-avg_density to the PDE problem:
volume = df.assemble(df.Constant(1.) * df.dx(domain=mesh))
avg_density_form = density_function / (df.Constant(1. * volume)) * df.dx(domain=mesh)
pde_problem.add_scalar_output('avg_density', avg_density_form, 'density')

# Add output-compliance to the PDE problem:
compliance_form = df.dot(f, displacements_function) * dss(6)
pde_problem.add_scalar_output('compliance', compliance_form, 'displacements')

# Add Dirichlet boundary conditions to the PDE problem:
pde_problem.add_bc(df.DirichletBC(displacements_function_space, df.Constant((0.0, 0.0)), '(abs(x[0]-0.) < DOLFIN_EPS)'))

1.4. Set up the OpenMDAO model

# Define the OpenMDAO problem and model

prob = om.Problem()

num_dof_density = pde_problem.inputs_dict['density']['function'].function_space().dim()

comp = om.IndepVarComp()
comp.add_output(
    'density_unfiltered',
    shape=num_dof_density,
    val=np.random.random(num_dof_density) * 0.86,
)
prob.model.add_subsystem('indep_var_comp', comp, promotes=['*'])

comp = GeneralFilterComp(density_function_space=density_function_space)
prob.model.add_subsystem('general_filter_comp', comp, promotes=['*'])


group = AtomicsGroup(pde_problem=pde_problem)
prob.model.add_subsystem('atomics_group', group, promotes=['*'])

prob.model.add_design_var('density_unfiltered',upper=1, lower=1e-4)
prob.model.add_objective('compliance')
prob.model.add_constraint('avg_density',upper=0.40)

# set up the optimizer
if True:
    prob.driver = driver = om.pyOptSparseDriver()
    driver.options['optimizer'] = 'SNOPT'
    driver.opt_settings['Verify level'] = 0

    driver.opt_settings['Major iterations limit'] = 100000
    driver.opt_settings['Minor iterations limit'] = 100000
    driver.opt_settings['Iterations limit'] = 100000000
    driver.opt_settings['Major step limit'] = 2.0

    driver.opt_settings['Major feasibility tolerance'] = 1.0e-6
    driver.opt_settings['Major optimality tolerance'] =2.e-10
else:
    prob.driver = om.ScipyOptimizeDriver()
    prob.driver.options['optimizer'] = 'SLSQP'

prob.setup()
prob.run_model()
# print(prob['compliance']); exit()
prob.run_driver()


#save the solution vector
if method =='SIMP':
    penalized_density  = df.project(density_function**3, density_function_space)
else:
    penalized_density  = df.project(density_function/(1 + 8. * (1. - density_function)), density_function_space)

df.File('solutions/case_1/cantilever_beam/displacement.pvd') << displacements_function
df.File('solutions/case_1/cantilever_beam/penalized_density.pvd') << penalized_density

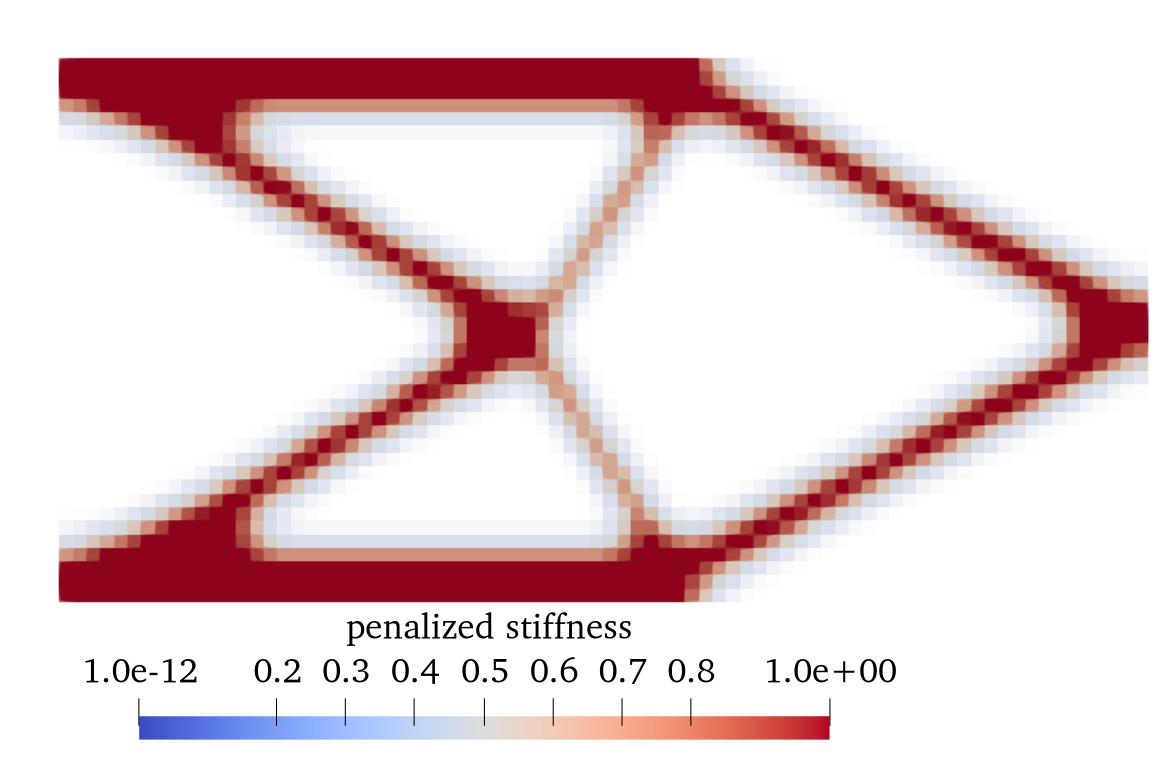

2. Results (density plot)

The users can visualize the optimized densities by opening the <name>.pvd from Paraview.
